1. Built-in high-pressure air-assisted nozzle: S10 is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.

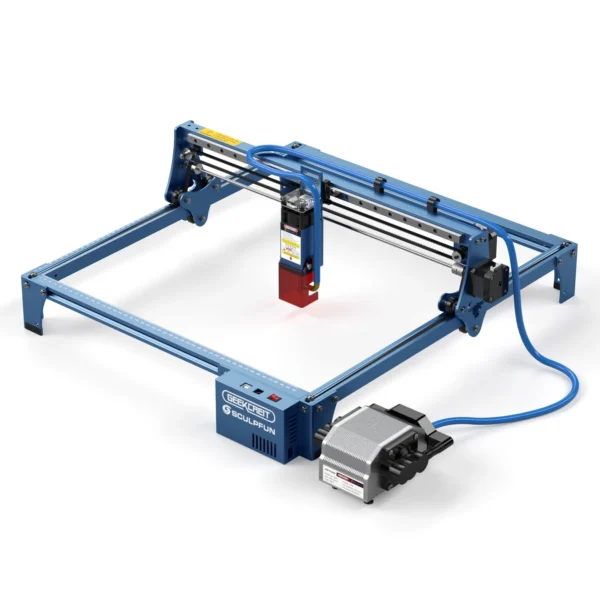

2. With a 30L/min air pump in the package: It comes with a strong and durable 30L/min air pump in the package, which can be used directly without purchasing an additional air pump.
3. Ultra-fine and high-density 10W laser shaping technology: The laser power of S10 is increased to 10W, which is twice that of S9. But get the same 0.08mm focus ultra-fine laser beam as S9, which means S10 has higher energy density, stronger cutting penetration and engraving ability.
4. Faster, stronger and cleaner: Combining advanced high-speed air-assist and 10W high-energy density laser, S10 reflects industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, and the cutting is faster; the second is The cutting penetration is stronger, and many high-density woods can be cut; the third is that the cutting surface is cleaner, and the strong airflow blows away the residue, so that there is no stain on the surface of the cutting object.

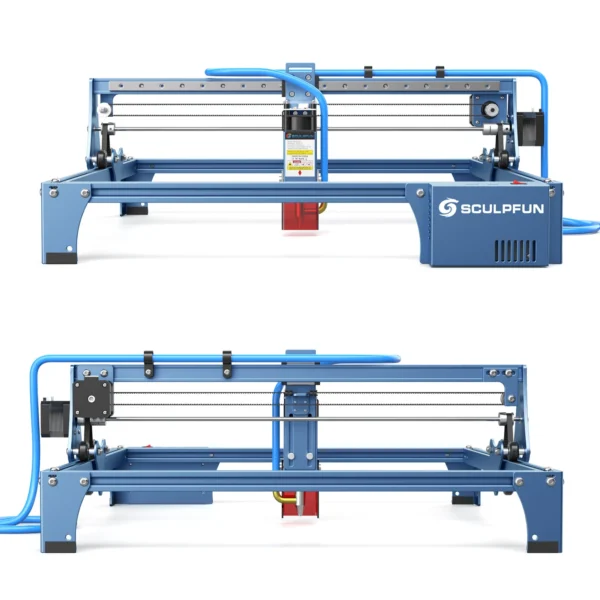

5. Industrial-grade cutting accuracy: S10 adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S10 does not have the wavy pattern that ordinary engraving machines appear.
6. More advanced and upgradeable 32-bit motherboard: S10 motherboard adopts 32-bit chip, which has faster operation speed, and also retains the Z-axis and limit switch functions, which is convenient for people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.
7. Expandable engraving area: S10 follows the Y-axis expandable design of S9, the original engraving area is about 410x400mm, but you can buy the S10 Y-axis expansion kit to expand the engraving area to 410X940mm, which can help you pass a very low price Gain 230% of the engraved area. This can help you better handle large-area engraving or cutting jobs.
8. Detachable laser eye shield: S10 is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don’t need it, you can easily disassemble it.
9. Safe design: There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable.
10. A4 steel pad: The complimentary A4 size steel pad can well protect the table from laser damage. Isolate fire hazards.

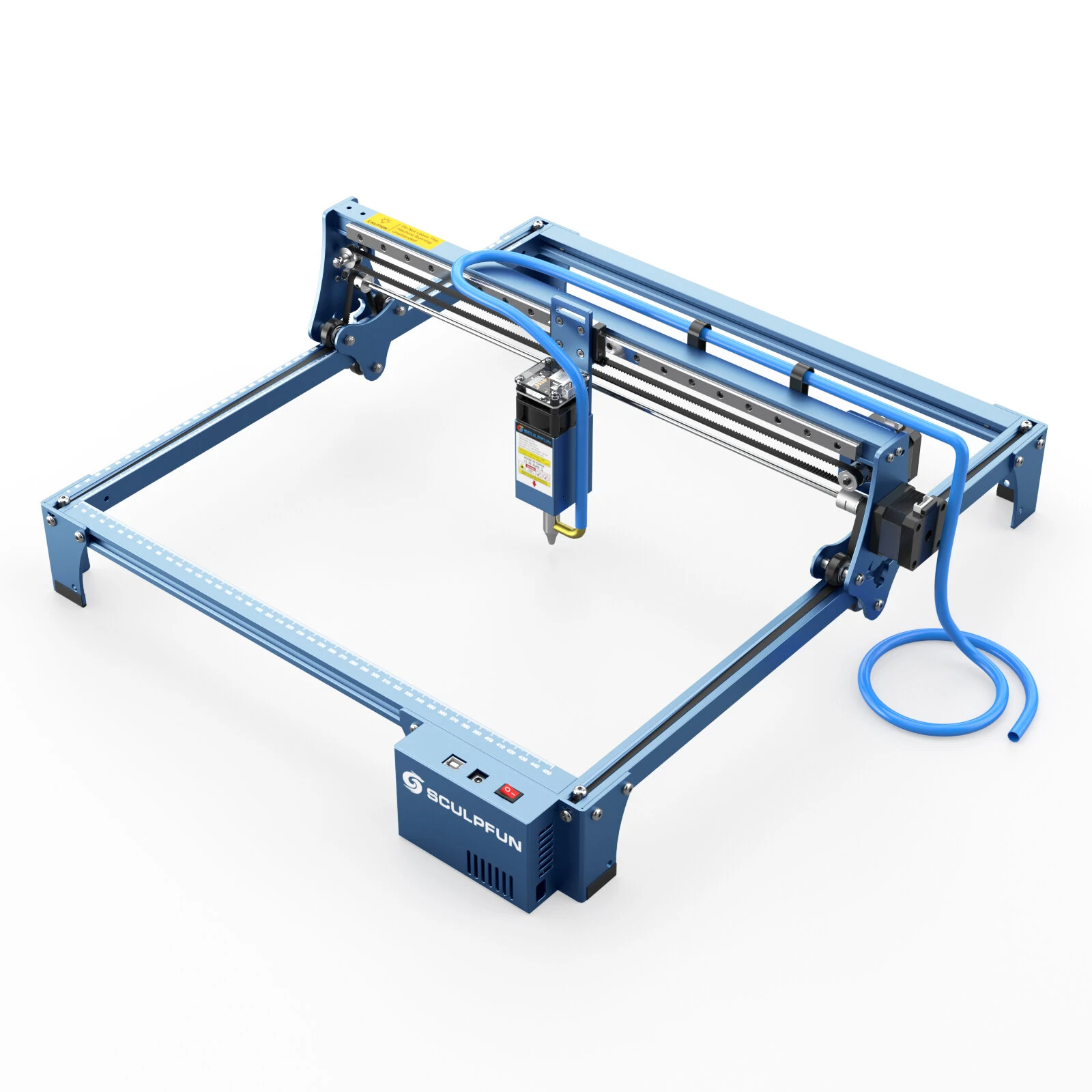

11. Right-angle measuring ruler: There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to measure the size of the engraved object quickly. The 410x400mm large-area engraving range can meet your various engraving needs.
Product model: GEEKCREIT&SCULPFUN S10
Diode laser output power: 10W (note that this is light energy not electrical energy)
Air pump specification: 30L/min
Air hose inner diameter: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, recommended outlet diameter of 8mm)
Laser wavelength 455±5nm
Engraving accuracy: 0.01mm
Engraving area size: 410*400mm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption)
Engraving material: all kinds of wood (including walnut, cherry and other high density wood), MDF, z1gzag, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LaserGRBL, L1ghtBurn, LaserGRBL, L1ghtBurn, Benbox, GrblController, L1teFire, support Windows system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transfer method: USB connection
Power Input: 100-240V AC, 50/60HZ Output: 12V 5A
Equipment net weight: 3.42kg
Packing weight: 6.65kg
Packing size: 620*230*230mm
Certification: CE FCC RoHS FDA ICE certification
GEEKCREIT&SCULPFUN S10 engraving machine packing list:
1× 30L/Min air pump
1 x X-axis assembly
2 x X profiles
2 × Y profiles
1×Control Box Assembly
3 x support feet
1×12V 5A power adapter
1 x power cord
1× Laser Goggles
1× Test Plank Pack
1 x A4 metal backing plate
Step 1-6 Install the package
●Because of the powerful laser of S10, it is forbidden to run the engraving machine unattended. Stop it if you’re not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
