1. Built-in high-pressure air-assisted nozzle: The upgraded S9 is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, which is more than 5 times faster than the cutting speed without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.
2. Comes with a 30L/min air pump in the package: It comes with a strong and durable 30L/min air pump in the package, which can be used directly without purchasing an additional air pump.
3. Ultra-fine and high-density 5W laser shaping technology: the same 0.08mm focus ultra-fine laser beam as S9, higher energy density, stronger cutting penetration and engraving ability.
4. Faster, stronger and cleaner: Combining advanced high-speed air assist and 10W high-energy density laser, the upgraded version of S9 reflects industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, and the cutting is faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; third, the cutting surface is cleaner, and the strong airflow blows away the residue, so that the surface of the cutting object is free of any stains.
5. Industrial-grade cutting accuracy: The upgraded version of S9 adopts the extremely sturdy and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S10 does not have the wavy pattern that ordinary engraving machines appear.
6. Expandable engraving area: The upgraded S9 follows the Y-axis expandable design of the S9, the original engraving area is about 410x400mm, but you can buy the S10 Y-axis expansion kit to expand the engraving area to 410X940mm, which can help you pass very low Get 230% of the engraving area for the price of . This can help you better handle large-area engraving or cutting jobs.
7. Detachable laser eye shield: S10 is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don’t need it, you can easily disassemble it.
8. A4 steel pad: The provided A4 size steel pad can well protect the table from laser damage. Isolate fire hazards.
9. Right-angle measuring ruler: There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to measure the size of the engraved object quickly. The 410x400mm large-area engraving range can meet your various engraving needs.

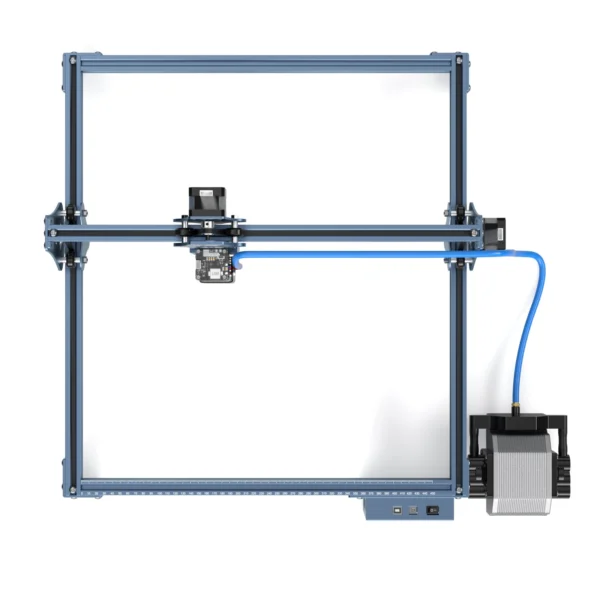

Product Model: GEEKCREIT&SCULPFUN Upgraded S9
Diode laser output power: 5W (note that this is light energy not electrical energy)
Air pump specification: 30L/min
Air hose inner diameter: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, recommended outlet diameter of 8mm)
Laser wavelength 455±5nm
Engraving accuracy: 0.01mm
Engraving area size: 410*400mm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Machine power consumption: about 30W (not related to engraving or cutting performance, just power consumption)
Engraving material: all kinds of wood (including walnut, cherry and other high density wood), MDF, z1gzag, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LaserGRBL, L1ghtBurn, LaserGRBL, L1ghtBurn, Benbox, GrblController, L1teFire, support Windows system,
Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transfer method: USB connection
Power Input: 100-240V AC, 50/60HZ Output: 12V 5A
Certification: CE FCC RoHS FDA ICE certification
GEEKCREIT&SCULPFUN upgraded version S9 engraving machine packing list:
1× 30L/Min air pump
1 x X-axis assembly
2 x X profiles
2 × Y profiles
1×Control Box Assembly
3 x support feet
1×upgraded S9 laser
1×12V 5A power adapter
1 x power cord
1× Laser Goggles
1× Test Plank Pack
1 x A4 metal backing plate
Step 1-6 Install the package
●Because of the powerful laser power of S9, it is forbidden to run the engraving machine without supervision. Stop it if you’re not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
