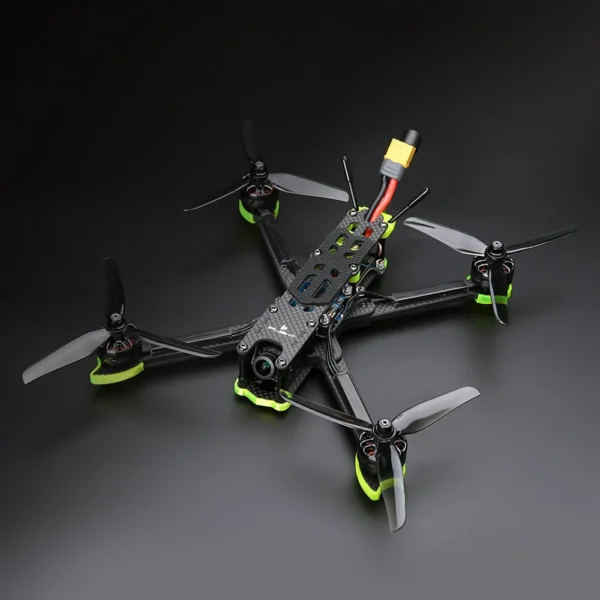

iFlight Nazgul5 V2 Analog 240mm 5 Inch 4S Freestyle FPV Racing Drone BNF/PNP RaceCam R1 Cam BLITZ F7 45A ESC 2207 2750KV Motor

Availability:

3 in stock


$319.98

3 in stock

Item will be shipped in 1-2 business days
  Ask a Question
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your reg
  • BLITZ F7 Flight Controller
  • XING-E 2207 FPV Motor (4S 2750KV )
  • Wheelbase:   240mm*240mm
  • Body size: 170*170mm
  • Propeller size: 5 inch /5.1 inch
  • FC pattern: 30.5*30.5/20*20 mm
  • FPV cam spacing: 19mm
  • Weight: 393.4g (without battery)

Store
2.5 out of 5
SKU: 6904952850628 Category: Tags: ,
Weight 0.78 kg
Receiver

Frsky RXSR Receiver

  • BLITZ F7 Flight Controller
  • XING-E 2207 FPV Motor (4S 2750KV )
  • Wheelbase:   240mm*240mm
  • Body size: 170*170mm
  • Propeller size: 5 inch /5.1 inch
  • FC pattern: 30.5*30.5/20*20 mm
  • FPV cam spacing: 19mm
  • Weight: 393.4g (without battery)





BLITZ F7 Flight Controller MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V  2.5A
BLITZ E45S 45A BL_S 4In1 2-6S ESC Input voltage: 2-6S
Firmware: QH-40 16.7
Continuous current: 45A
Instantaneous current: 55A
MCU:BB21
Current sensor: yes scale 200
Drive signal support: DShot150/300/600MultiShot.OneShot
Weight: 15g
SucceX Force 5.8g 800mW VTX Adjustable – Item: SucceX-Force 800mW adjustable VTX

– Input voltage:

– Output voltage/ Max current: 5V 1A

– 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW,250mA@500mW, 380mA@800mW

– Output 48 frequency points,

– size:36*36*3mm

– PIT/25mW/200mW/400mW/800m
