iFlight Nazgul5 V2 HD 6S 5 Inch 240mm Freestyle FPV Racing Drone PNP/BNF Caddx Polar Vista XING-E 2207 1800KV SucceX-E F4 45A ESC USA/CZ Warehouse Nebula Nano

Availability:

1 in stock


Feature:
– 5mm arm design for more durability
– Easy-Swap arms
– LED illuminated Logo
– XING-E 2207 motors and NAZGUL 5140 props
– 5″ version also fits 5.1″ style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks

$533.76

1 in stock

  Ask a Question

Note:

The flight controller is in the update stage. From succex-E F7 to BLITZ F7. Please note they ship randomly now.

from SucceX-E F4 45A ESC to BLITZ E45S 45A ESC,  Please note they ship randomly now.

USA/CZ Warehouse comes Nebula Nano version.

 New Version Old Version
BLITZ F7 V1.1 Flight Controller ( Link)

Brand: iFlight
Model: BLITZ F7 V1.1
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g

SucceX-E F4 Flight controller


– MCU:STM32F405
– Gyro:MPU6000
– Betaflight OSD:YES
– Blackbox:8MB
– 4X Uarts(1 2 3 6 )
– 8 x Dshot/Proshot/Oneshot output
– 8 x individual ESC power/ signal pads
– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
– VTX telemetry: YES
– WS2812 led Strip:YES
– Baro:No
– Beeper:YES
– Input:2-6S(Max 8S)
– BEC:5V/2.5A cont
– Firmware target : BETAFLIGHTF4
– Mounting:30.5*30.5mm,φ4mm with Grommets φ3mm
– Dimensions:36*36mm
– Weight:7.6g

BLITZ E45S 45A ESC ( Link)

Input voltage: 2-6S
Firmware: QH-40 16.7
Continuous current: 45A
Instantaneous current: 55A
MCU:BB21
Current sensor: yes scale 200
Drive signal support: DShot150/300/600MultiShot.OneShot
Weight: 15g

 SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
– Dimension: 40*43mm
– Mounting Holes: 30.5*30.5mm/Φ3mm
– Weight: 14.4g
– Supports 2-6S Lipo input
– STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
– Current sensor: YES
– BEC: NO
– Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
– Target: G-H-30 BLS 16.7



PRODUCT DESCRIPTION

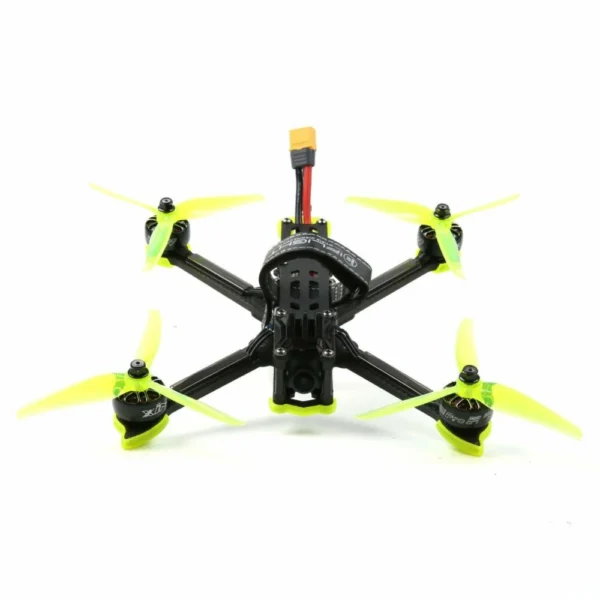

Nazgul5 HD is a 5′ size BNF (Bind-and Fly) quadcopter with the DJI Digital FPV system on it.  Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings.

Specification:

  • Brand name: iFlight
  • Item name: Nazgul5 HD 4S 5 Inch FPV Racing Drone
  • SucceX-E F4 45A Flight Stack
    XING-E 2207 FPV Motor (
    6S 1800KV )
    Wheelbase: 240mm
    Body Size: 170*170mm
    Propeller Size: 5 inch /5.1 inch
    FC Mounting Hole: 30.5*30.5/20*20 mm
    FPV Cam Spacing: 19mm
    Weight: 400.8g (without battery)

Feature:
– 5mm arm design for more durability
– Easy-Swap arms
– LED illuminated Logo
– XING-E 2207 motors and NAZGUL 5140 props
– 5′ version also fits 5.1′ style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks

Package Included:

  • 1 x XL5 V5 Frame
    1 x Caddx Vista VTX
  • 1 x Polar Camera  (USA/CZ comes Nebula NANO )
  • 1 x SucceX-E F4 45A Flight Stack
  • 4 x XING-E 2207 FPV Motor ( 6S 1800KV )
    1 x Albatross LHCP RP-SMA 5.8g antenna
    2sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)
    1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
    1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

Important
The DJI Remote Controller is recommended for beginners since you won’t need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don’t choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter. and then bind to your own radio as usual.

SKU: 6900072502256 Category: Tags: , ,
Weight 0.4008 kg
