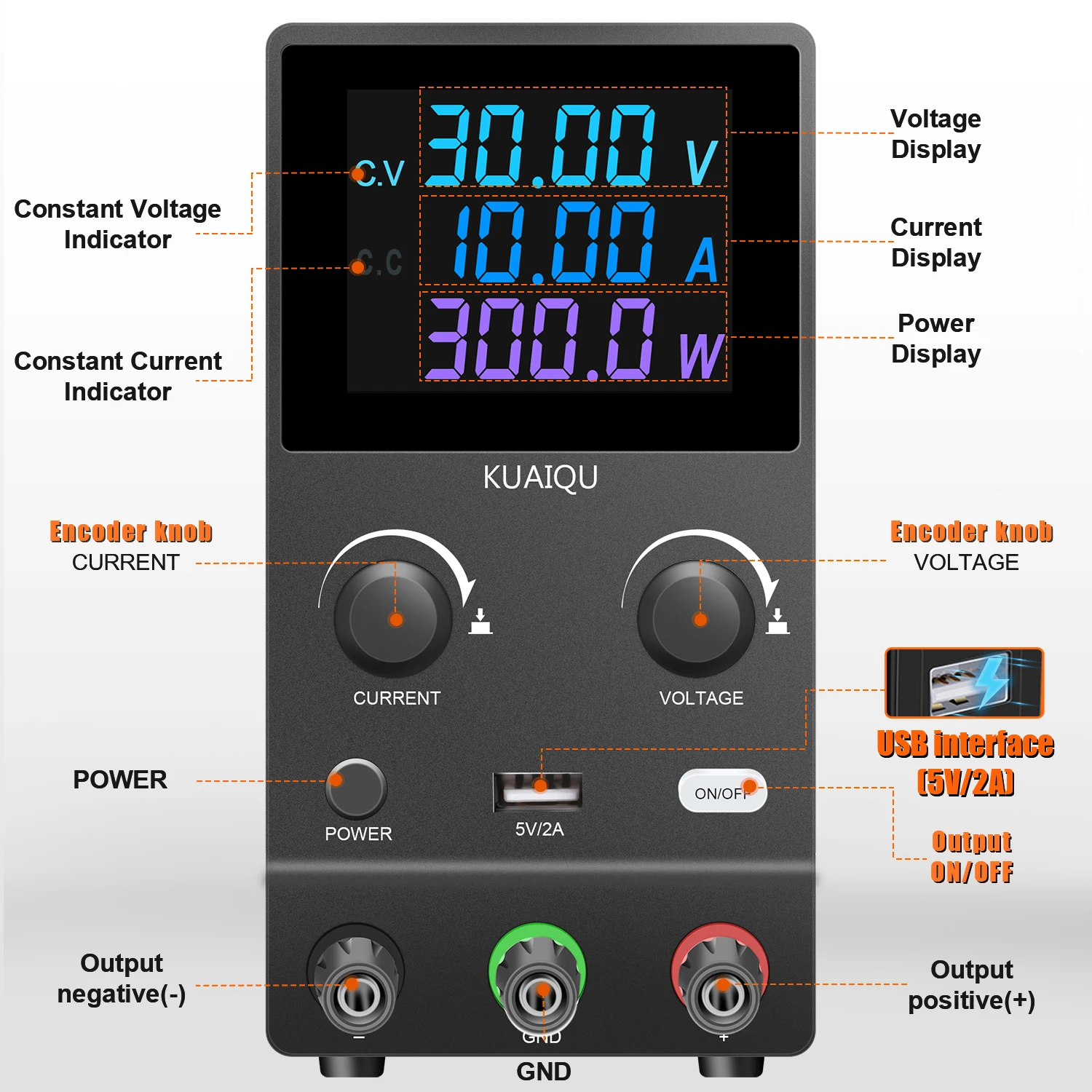

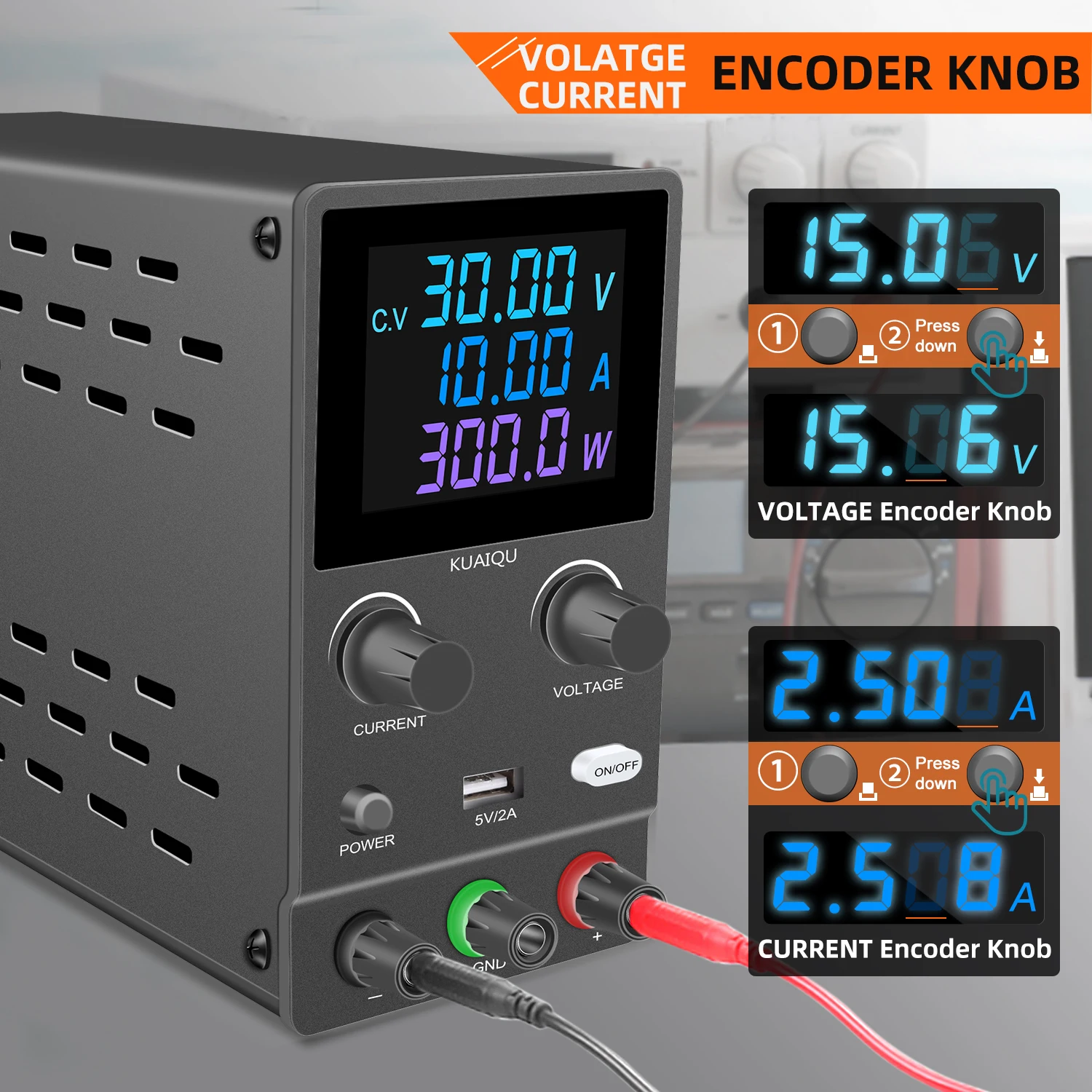

【Upgraded High-precision encoder knob】Just “set” Voltage and Current instead of “adjust”. You can press the Voltage and Current encoder knob to select the Digit you want to adjust, then rotate the knob to set the value from 0-9. Each Digit can be set easily by the accurate encoder knob. The encoder switch replaces the potentiometer switch, making your work easier, more accurate and efficient.

【Precise 4-digit LED Display】The KUAIQU DC bench power supply has a resolution of 0.01V and 0.001A, and you can easily adjust it in the range of 0-30/60/120V and 0-3/5/10A. The 4-digit back-lit LCD display provides more accurate and clearly visible readings for the voltage and current value, even in conditions of low voltage.

【Small and Diverse Applications】Worried about the bulky power supply? This compact and sophisticated DC power supply weighs much less than a laptop at just 1.3kg, saving more space on your workbench. And you can use it in various scenarios such as laboratory, repair, electrolysis, burn-in test, electroplating, brush plating, electronic DIY, etc.

【Safe and Reliable to Use】Safety is our priority. The DC power supply is FCC/CE certified. The built-in fan low arc noise & low ripple,The power supply is durable and compact. Productive work since the power supply comes multiple protection of Over-voltage, over-current, over-power, over-temperature, short-circuit powerful protection function.

The power supply uses advanced technology PWM, voltage, current can be continuously adjustable from 0 – 30V/60V/120V 0-3/5/10A Rating obtain Ultra-low ripple. High-precision reference voltage source, rational circuit design, the ability to provide highly accurate output. High-power MOS devices Application, to ensure adequate power supply, improve the long-term stability of the power at full load work. Perfect protection function, in order to protect the load And the power supply are not damaged. Simple operation, and a plurality of power supply can be directly connected in series, parallel, expanded power Range of applications.

Application:

1. For Factory Production line test.

2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.

3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.

4. For Charge the battery (Include car battery).

5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.

6. For Security monitoring system, fire protection system, building automation system.

Features:

1.LCD Screen Protect your eyes (24hours Working) vs LED screen.

2.Have complete operating protection function(Short circuit protection)

3.Highly efficient, low ripple, small volume, light weight

4.Display voltage, current,power, high precision

5.Voltage stabilization, current limiting, simple operation

6.Single voltage input（Dual voltage input easily destroys power supply）We will Send

the correct input voltage power supply according to your country

7.Temperature control fan heat dissipation, low noise

8.Double potentiometer more precise adjustment

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment

10.Output current ranges from 0 to rating current with continuous adjustment

DC Power Supply Specification:

1. Input voltage: 220V  50Hz  /110V  60Hz Switch or a single voltage input

2. Output voltage: DC 0- 30V/60V Ratings V (see Table I)

3. Output Current: DC 0-5A/10A rated A (see Table I)

4. Display Accuracy:1%  1 word (three / three and a half digital display,     voltage resolution 0.1V, current resolution 0.1A) 0.1%  1 word (four / four semi-digital     display, voltage resolution 0.01V, current resolution 0.01A)

5. boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)

6.Constant pressure state:

Voltage stability ≤ 0.1%+3mV Low voltage: 0.2~0.3%+3mV

Load stability ≤ 0.5%+3mV

Ripple noise: ≤ 30mVrms (effective value)

7.Constant current state:

Current stability ≤ 0.2%+3mA

Load stability ≤ 0.2%+3mA

Ripple noise: ≤ 20mArms (effective value)

8.Display accuracy: 0 5%+2 words

9. Ripple and Noise: CV≤10mV CC≤20mA (RMS)

10. Overall efficiency: ≥80% (under full load test)

11. Working environment: -10  – + 40  Relative humidity 20% -80% (non-condensing)

12. Storage Environment: -20  – + 80  Relative humidity 20% -70% (non-condensing)

13. Pressure test: Input – Output: 1.5KVAC / 1 Minute Input – Housing:      1.5KVAC / 1 Minute Output – Housing: 500VAC / 1 Minute

14. Ground Resistance: <20mΩ

Packing List:

1X DC Power Supply

1X Power Adapter(EU/AU/UK/US we will send according to you country)

1X Black Output Line (high quality)

1X Red Output Line(high quality)

1X Instruction Book (English)

1X Pakcgae Box（Hard）

2X Protective Sponge

1X Certificate of Conformity(1 Year)
