|Product Model||SCULPFUN S9|
|Engraving Materials||Wood, Paper, Cardboard, Plastic, White, PCB Board, Aluminum Oxide, 304 Stainless Steel, Ceramic，Dark Stone|
|Cutting Materials||Wood, Acrylic, Cardboard, Fabric, Bamboo, Plastic Board, KT Board|
|Laser Effect Power||Cutting Effect Compared to 90W CO2 Laser|
|Machine Electricity Power||30W (It has nothing to do with cutting or engraving performance,just electricity consumes)|
|Diode Laser Power||5.5-6W (Please note that this is light energy and not electric energy)|
|Laser Wave Length||455±5nm|
|Focusing Method||Fixed Focus Laser + Sliding Device|
|Laser Protective Cover||The light filter cover on the laser protects the user’s eyes and prevents animals grabing the laser spot.|
|Operating Software||LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, L1teFire, support Windows system, support Apple system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.|
|Data Transmission Method||USB Connection|
|Power Supply||International Universal Standard|
|Power Input||100-240V AC, 50/60HZ|
|Power Output||12V 5A|
|Equipment Net Weight||3.0kg|
|Certification||CE FCC RoHS FDA IEC|

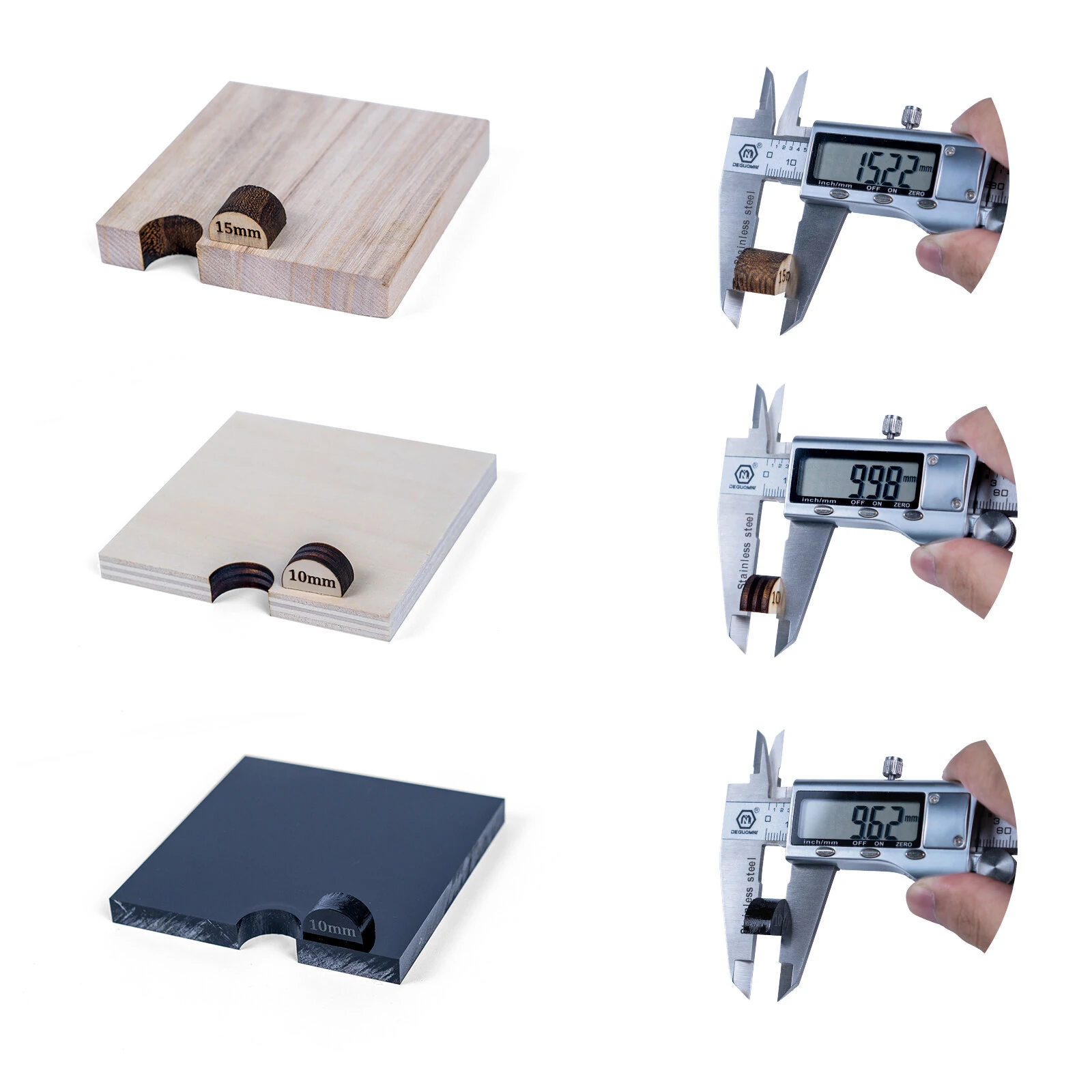

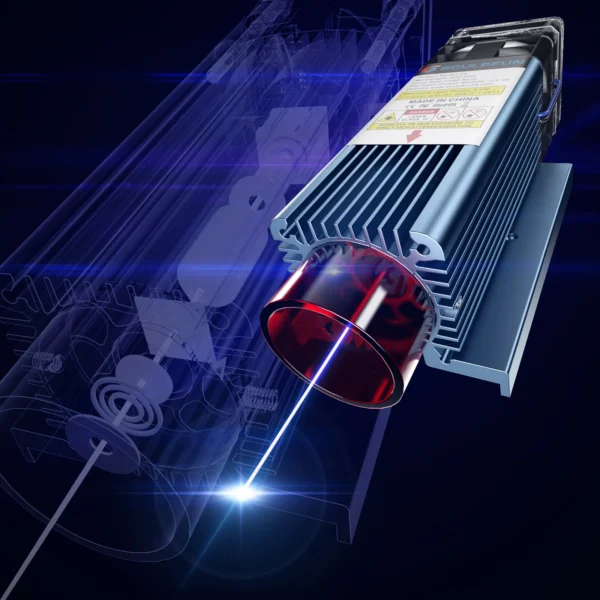

1. 90W Effect Laser Beam Shaping Technology: S9 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, he can cut up to 15mm thick wood, 10mm acrylic, carve ceramics and stainless steel, this is almost beyond the effect of 90W CO2 laser.
2. Fast Focusing Design: S9 has the fastest focus design. The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .

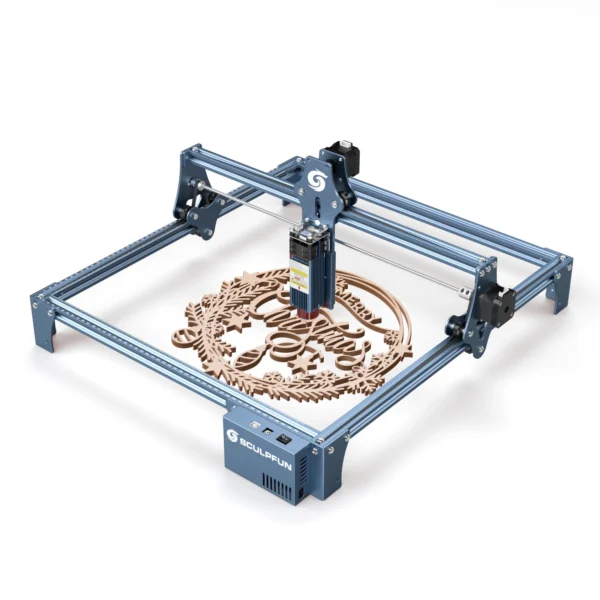

3. Solid and Easy-assembly Structure Design: The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving. The whole structure is designed for easy-assembly, and the assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.
4. New Eye Protection Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time it can prevent animals from catching the laser spot.
5. Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, L1teFire, supports PWM mode engraving, supports Windows system, Apple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
6. Safe Design: The machine is equipped with a very convenient power switch, which is not available in others. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.
7. A4 Steel Pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
8. Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.
S9 Pro Engraving Machine Packing List:
|1×||X axis assembly|
|1×||Control Box Module Set|
|1×||Laser Module Set|
|1×||12V 5A Power Adapter|
|Step 1~5 Screw Installation Package|
|1×||T-shaped M5 Screwdriver|
|1×||L-shaped M4 Screwdriver|
|1x||L-shaped M3 Screwdriver|
|1×||8-10mm Nut Wrench|
|1×||10x10cm Wood Chip 3mm Thickness|
|1×||10x10cm Wood Chip 10mm Thickness|
|1×||A4 Size Steel Desktop Protection Pad|
● For detailed machine instructions, please refer to the manual for parameter settings.
● When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
