LiteVNA-64 50KHz ~ 6.3GHz LiteVNA 3.95″ Touch Screen Vector Network Analyzer HF VHF UHF Antenna Analyzer Update of NanoVNA
In stock
$159.99 $372.25
In stock

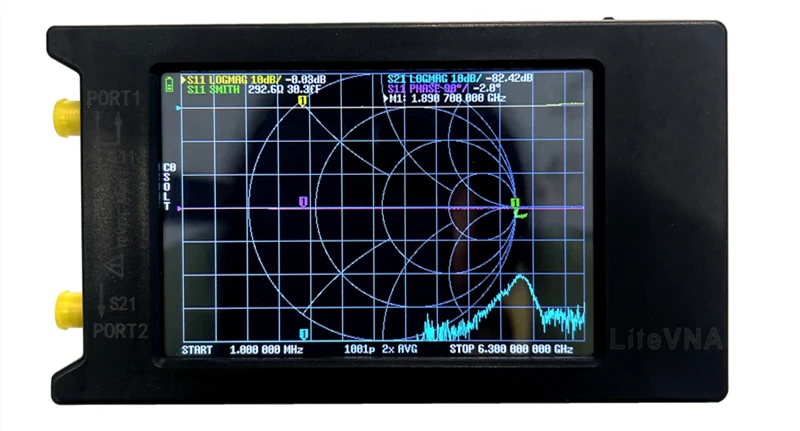

LiteVNA as small as NanoVNA and has an ultra-wide measurement range of 50kHz-6.3GHz, a portable vector network analyzer (VNA).
In order to reduce power consumption and volume, LiteVNA uses only one mixer, through the internal RF switch, can perform S11, S21 measurement, and can perform TDR and DTF measurement after IFFT calculation.
In addition to a wider measurement range, LiteVNA also has faster scanning speed and more scanning points. The operation interface consistent with NanoVNA makes it easy to use LiteVNA as a tool for field testing.
LiteVNA has a MicroSD slot, you can save the field test data or screen to the MicroSD card at any time
The 6.3GHz measurement range, in addition to meeting common amateur radio and Internet of Things applications, can also handle 5GHz testing, 5.8GHz wifi and 5.8GHz image transmission.

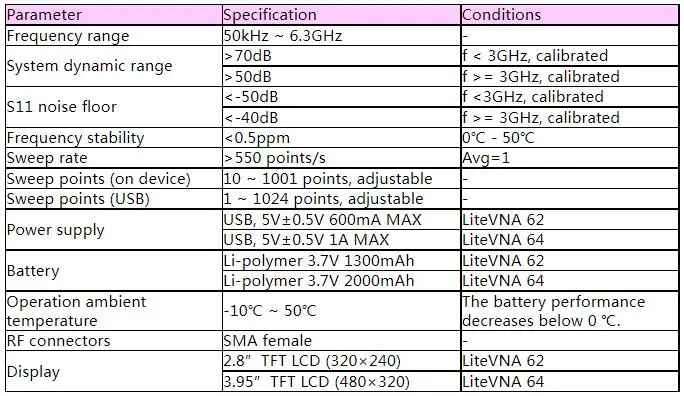

Parameters
Package include
LiteVNA-64 x 1
USB Type-C data cable x1
30cm SMA male to male SS405 RF cable x2
SMA male calibration kit – OPEN x1
SMA male calibration kit – SHORT x1
SMA male calibration kit – LOAD x1
SMA female to female connector x1
