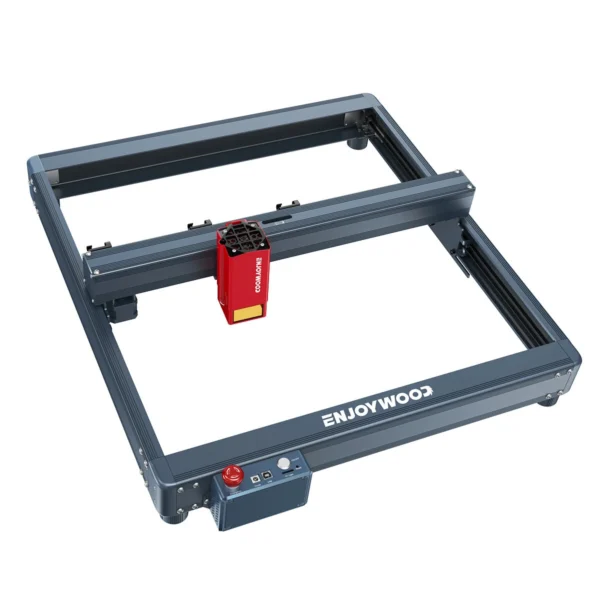

ENJOYWOOD E20 20W Upgrade Laser Engraver with Air Assist System 24000mm/min 130W Diode DIY Laser Engraving Cutting Machine

Enjoywood
Availability:

In stock


Feature:
1. Super high power: the world’s first 20W optical power laser engraving machine. The latest four 6W laser coupling technology, with powerful power, can cut 12-15mm paulownia board, 8mm black acrylic board, and even 0.05mm stainless steel sheet at one time.
2. The product is equipped with an air kit as standard: The cutting ability has been greatly improved, and the cutting accuracy and cutting quality can also be greatly optimized.
3. Newly upgraded 32-bit motherboard: Built-in 256-bit color scale map, which makes the engraving work more delicate and has higher contrast, so that your engraving is not only black.
4. Newly designed laser: Tired of fixed focus film? Think air assist is not aesthetically pleasing? Now, the new E20 laser has a built-in tool-free focusing module, and a built-in air assist system, without the interference of wires, simple and beautiful.
5. Enjoywood self-developed Mobile phone APP: The APP has been launched in major Android application markets(you can also scan the QR code of the manual to download). It is small in size and multifunctional, bringing a new control experience.
6. Brand-new filter panoramic glass eye protection design: The panoramic filter glass protective cover can protect your eyes very well, filtering 97% of ultraviolet light, you and the people around you don’t need to wear goggles, you can also watch Laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.

$399.99

In stock

Item will be shipped in 1-2 business days
  Ask a Question
ENJOYWOOD E20 20W Upgrade Laser Engraver with Air Assist System 24000mm/min 130W Diode DIY Laser Engraving Cutting Machine
Specification:
Item Model Number ENJOYWOOD E20
Working Area 400*400mm
Machine Power 130W
Electric Power 90W
Laser Output Power 20-21W
Wave Length 445 ± 5nm
Engraving Accuracy 0.01mm
Laser spot size 0.08*0.1mm
Routing Speed 24000mm/min
Carving Objects Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective, electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate
Cutting Objects Cardboard, non-woven fabric, wood board, acrylic, thin plastic board, sponge.
Focusing Method Fixed focus laser, no need to focus
Laser Protective Cover Protect the user’s eyes and prevent pets from grabbing the laser spot
Operating Software PC: LaserGRBL, LightBurn, support  Win XP / Win 7 / Win 8 / XP / Win 10 system

Mobile: APP, support IOS, Android

Input Format NC, BMP, JPG, PNG, DXF, etc
Data Transmission Method USB Connection
Input Voltage AC100-240V, 50/60Hz
Output Voltage DC24V, 5A
Certification CE FCC RoHS FDA PSE
Plug EU/US/UK/AU
Feature:
1. Super high power: the world’s first 20W optical power laser engraving machine. The latest four 6W laser coupling technology, with powerful power, can cut 12-15mm paulownia board, 8mm black acrylic board, and even 0.05mm stainless steel sheet at one time.
2. The product is equipped with an air kit as standard: The cutting ability has been greatly improved, and the cutting accuracy and cutting quality can also be greatly optimized.
3. Newly upgraded 32-bit motherboard: Built-in 256-bit color scale map, which makes the engraving work more delicate and has higher contrast, so that your engraving is not only black.
4. Newly designed laser: Tired of fixed focus film? Think air assist is not aesthetically pleasing? Now, the new E20 laser has a built-in tool-free focusing module, and a built-in air assist system, without the interference of wires, simple and beautiful.
5. Enjoywood self-developed Mobile phone APP: The APP has been launched in major Android application markets(you can also scan the QR code of the manual to download). It is small in size and multifunctional, bringing a new control experience.
6. Brand-new filter panoramic glass eye protection design: The panoramic filter glass protective cover can protect your eyes very well, filtering 97% of ultraviolet light, you and the people around you don’t need to wear goggles, you can also watch Laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.
7. Sturdy and easy-to-install structural design: The all-aluminum anodized structural design makes the machine more durable and improves the engraving accuracy. The whole structure has been designed for quick installation, and the installation can be completed in generally 20-30 minutes.
8. Upgraded version of high-performance fixed-focus laser: It can be engraved without focal length adjustment; the focal spot area of the new laser is only 13 times that of other common lasers, and it can take into account precision engraving and high-energy cutting at the same time. At the same time, the laser power of the fixed-focus laser is more stable than that of the zoom laser.
9. Wide compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports Win XP Win 7 Win 8 XP Win 10, and also supports LightBurn and the engraving file format supports NC, BMP , JPG, PNG, DXF, etc.
10. Precise scale line axis: X-axis and Y-axis contain precise scale lines, which is convenient for you to quickly measure the length. The 400x400mm large-area engraving area can meet your various engraving needs.
11. Upgraded compressed spot coupling technology: Ultra-fine laser focus area reduced to 0.08×0.1mm, high-density laser can easily cut 25mm thick wood, 30mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, engraving & cutting The speed is 40% higher than that of ordinary models, and it can match the effect of 300W CO2 laser engraving machine.
12. Integral screw: The machine uses an integral screw instead of a combined shaft coupling. The stepping motor and the screw are integral, which makes the movement of the laser more precise and the coupling more durable.
13. New laser with knob: It is more convenient and quick to adjust the height of the laser.
14. Support offline engraving: Configure the terminal control panel, support offline engraving, you can carry out engraving anytime and anywhere without being limited by the computer.
15. High Laser sintering temperature. Laser sintering temperature is up to 2400℃.
16. Emergency stop button: If there is an unexpected situation, stop the machine at any time, and the engraving is safer.
17. Limiter: Yes
 Reset switch: yes
18. Expandable engraving size: Modular design of the fuselage mechanism, only need to replace the frame components, you can get a super large engraving size of 400-850mm.
Notice:
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, or you may burn your hands.
●Please avoid strong impact on the machine.
●Children under the age of 14 are prohibited from using this product, and children over the age of 14 need adult supervision.
●Do not apply the laser directly to any specular reflective objects, which may cause injury to the operator or burn the laser.
Package Included:
1 x Mounting screw
1 x Tool kit
4 x Foot pad foam
1 x Film
3 x Acrylic sheet
3 x Wood chips
10 x Wire tie
1 x Desiccant
1 x Brush
1 x Clean cloth
1 x Card reader
1 x TF card
1 x Power adapter
1 x Instruction
1 x Data line
1 x Touch screen components
1 x HDMI cable
1 x Laser module
1 x Cutting pad
1 x X axis assembly
1 x Y axis left profile
1 x Y axis right profile
1 x Profile on the base
1 x Under the base profile
3 x Foot bracket
