|Description||ATOMSTACK A5 M50 PRO eye protection fixed focus laser engraving machine, upgraded lens compression spot, metal engraving, 304 mirror stainless steel engraving, high-energy wood cutting, wood engraving, slate engraving, high-power laser cutting, laser cutting equipment, laser cutting machine, CNC Laser, CNC engraving, 20mm wood cutting, 15mm acrylic cutting, support offline engraving, with emergency stop button, safety laser engraving, 100W CO₂ laser engraving machine effect, all aluminum alloy structure, quick installation, 410x400mm engraving interval|

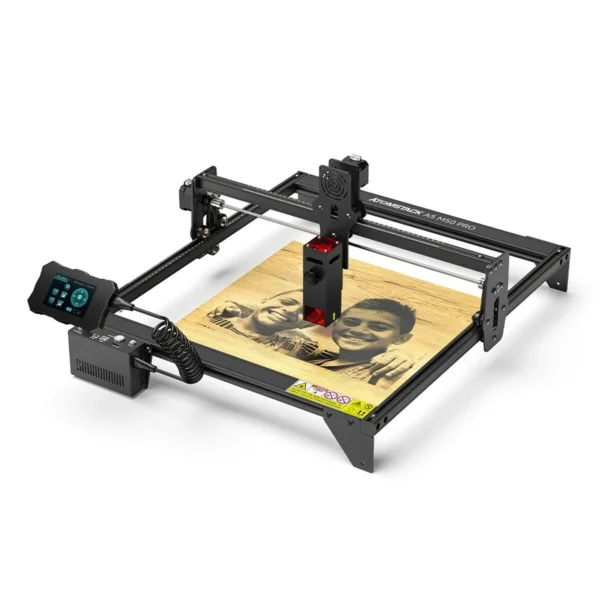

|Item Model Number: ATOMSTACK A5 M50 PRO ( With Touch Screen )
Engraving Area: 410*400mm
Carving Materials: Wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting Materials: Cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Laser Power: 40W
Laser Output Power: 5-5.5W
Wave Length: 445 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Method: fixed focus laser, no need to focus
Laser Protective Cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Equipment Net Weight: 3.426kg
Package Weight: 5.072kg
Equipment Size: 570*600*270mm
Packing Size: 620*345*130mm
Certification: CE FCC RoHS FDA
|1. Eye-protection Flame-retardant Filter Panoramic Glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.
2. Solid and Easy Installation Structure Design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
3. Upgraded High-performance Fixed-focus Laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
4. Wide Compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MACs system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise Scale Lines Axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
6. Newly Upgraded Compression Laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5-5.5W, and the laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 20mm thick wooden boards, 15mm black acrylic; can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of a 100W CO₂ laser engraving machine.
7. Integral Screw Rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New Type Laser with Knob: It is more convenient and quick to adjust the height of the laser.
9. Support Offline Engraving: Configure the terminal control panel, support offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer
10. The laser sintering temperature is up to 800~850℃
11. Emergency Stop Button: If an unexpected situation occurs, stop the machine at any time, making the engraving safer
12. Stopper: Yes
13. Reset switch: Yes
14. Expandable Engraving Size: Modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size.
|● When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
4×Foot pad foam
3 × wood chips
1×Touch screen components (Note: M50 Not include touch screen)
1×X axis assembly
1×Y axis left profile
1×Y axis right profile
1×Profile on the base
1×Under the base profile
